Iron treatment furnace



Ladle preheating �E Heating furnace




Metal heating furnace Pipe heating by Riello burners


Ladle heating
�iRielloburner setted otherside�j
Laddle heating burner


Laddle heating burner

Laddle heating burner for iron landle burner control unit of gutter burner


Rielllo burner is packaged with fan and other's all.
Small space and cost down achiced.





Type ‚` type ‚f‚r‚P‚O ‚f‚r‚Q‚O ‚f‚`‚r‚R ‚f‚`‚r‚S ‚f‚`‚r‚T ‚f‚`‚r‚U
burner power kcal/h 50,000 100,000 200,000 300,000 400,000 600,000
kW 58 116 233 349 465 698
time to 800�Ž hour about 3 about 3 about 3 about 3 about 3 about 3
Ladle size m3 0.30 0.60 1.20 1.80 2.40 3.60

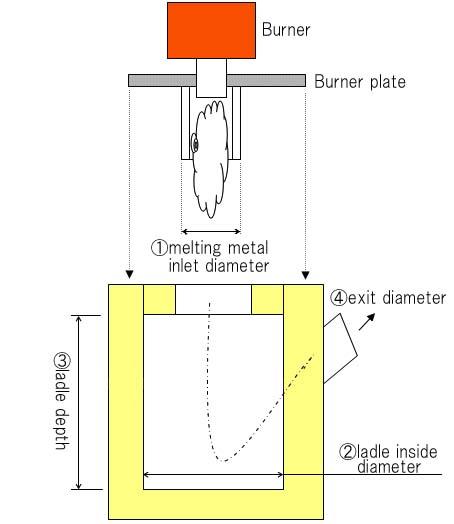

reference
melting metal
inlet diameter
‚� 0.21 0.30 0.42 0.52 0.60 0.73
ladle inside
diameter
‚� 0.80 0.95 1.10 1.20 1.30 1.50
ladle depth ‚� 0.77 0.80 1.12 1.26 1.35 1.43
exit diameter ‚� 0.04 0.06 0.08 0.15 0.29 0.72
