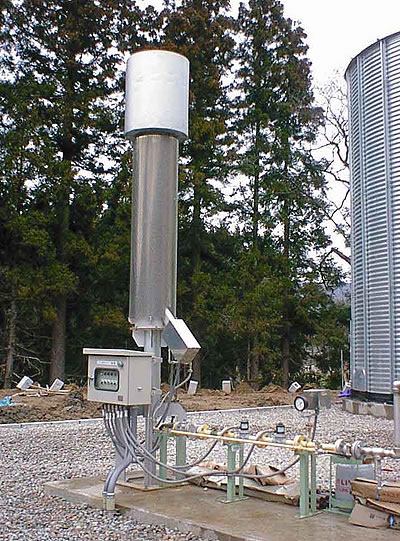

Stack Gas Combustion Treatment Unit
 |
|

|
|
Best Cost-Performance type / Stack Gas Combustion Treatment Unit
|
|
|
Stack gas should be treat without contain toxic gas, unburned gas, etc.
This system can operate Full turn key sytem with safety and efficiently to reduce
toxic gas and unburned.
This unit also can operate following condition with our flame stabilization technology.
Gas composed is changing
Gas flow rate is changing
Gas temperature is changing
This system equipped flame detection for monitoring stack gas flame and safety magnetic gas valve.
Also flame arrester are equipped more safety purpose.
This unit made Vertical type to reduce floor space and no use Air blower for combustion.
This is contribute to save electric power and Low noise condition.
|
| USES |
Sewage Gas, Fuel cell stack gas, Byproduct Gas
Low calolific value gas, Toxic gas, Smell gas |
Stack Gas Combustion Treatment Unit
|
 |
Feature |
 |
|
1. |
Full turn key |
 |
| 2. |
Eliminate flow rate change |
| 3. |
Flame detector equipped |
| 4. |
Small installation area |
| 5. |
Stack is high position |
| 6. |
Natural draft type |
| 7. |
Packaged with easy Installation |
 |
|
 |
|
Toxic Gas Treatment Unit
|
|
| Type |
ＬＣＩ |
-05 |
-25 |
-50 |
-100 |
-150 |
-250 |
| Installation |
Outdoor Specific・Non Explosion proof |
| Safety standard |
City gas three company standard |
| Safety Device |
Pilot flame monitoring |
| Operation |
Fully automatic operation |
| Condition |
| Temp. |
℃ |
At normal temperature |
| Flow Rate |
Nm3/h |
5 |
25 |
50 |
100 |
150 |
250 |
| Gas pressure condition |
kPa |
3 （300 ｍｍＡｑ ） |
| Gas Calorie |
MJ/Nm3 |
8.5〜20 （2,000 〜5,000ｋｃａｌ/Ｎm3 ） |
| Connect size |
ｍｍ |
25 |
50 |
80 |
100 |
100 |
100 |
| Pilot gas combustion rate |
| Combustion rate |
kW |
5.8 |
9.3 |
9.3 |
11 |
11 |
11 |
| LPG（2.8kPa ） |
Nm3/h |
0.21 |
0.33 |
0.33 |
0.42 |
0.42 |
0.42 |
| 12/13A（2kPa ） |
Nm3/h |
0.5 |
0.8 |
0.8 |
1 |
1 |
1 |
| Power |
Single phase-kW |
1 |
1 |
1 |
1.5 |
1.5 |
1.5 |
| Dimension・Weight |
Dimension
ｍｍ |
Ａ |
25 |
50 |
80 |
80 |
100 |
100 |
| Ｃ |
400 |
460 |
460 |
560 |
650 |
750 |
|
Ｄ |
2,500 |
3,100 |
3,200 |
4,700 |
6,000 |
7,000 |
Installation volume
ｍｍ |
Ｄ |
2,500 |
3,100 |
3,200 |
4,700 |
6,000 |
7,000 |
| Ｅ |
900 |
1,000 |
1,000 |
1,500 |
1,500 |
2,000 |
| Ｆ |
2,800 |
3,000 |
3,500 |
3,500 |
4,000 |
4,000 |
Basic Dimension
ｍｍ |
Ｇ |
1,100 |
1,200 |
1,200 |
1,700 |
1,700 |
2,200 |
| Ｈ |
3,500 |
3,600 |
4,000 |
4,000 |
4,600 |
4,600 |
| Total weight |
ｋｇ |
350 |
400 |
550 |
800 |
1,000 |
1,200 |
| Option |
Seismic sensor,Flow meter,Indoor specification,Remote control panel,supply condition change |
| Exclude |
Foundation work, Anchor bolt, Installation work, Secondary wiring and plumbing |
|
|
|
| |
